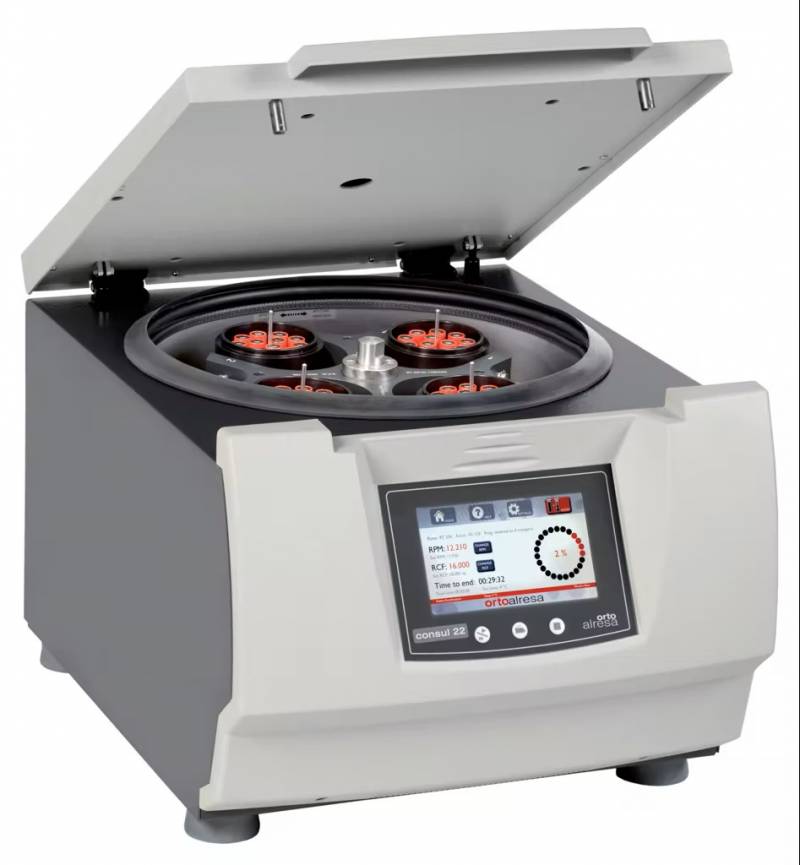

Consul 22
Φυγόκεντρος, 4 x 400 ml, 21.948 xg / 14.300 RPM
Κατασκευαστής : Orto Alresa
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Max. Capacity 4 x 400 ml
Screen Type TFT
Max. Speed 21.948 xg / 14.300 RPM
Features
TFT color touch screen, visible from more than 3 m.:
• Shows RPM and RCF, time, acceleration/deceleration values (PCBS) and
unbalance location system (ULS).
• Speed programming in 10 RPM/10 xg steps.
• Real RCF values on screen based on accessories configuration.
• Count up/down from “0” or at “set RPM/RCF” for reproducible tests.
• Timer from 1 sec. to 99 hours programmable in 1 sec. steps and hold position.
• PCBS: Progressive controlled acceleration and braking system up to 175
selectable ramps that prevents sample homogenization after separation.
• ULS: Unbalance location system indicating on the screen the number of the
bucket which produces the unbalance switch off.
• Start delay: To program the time at which the cycle is to begin.
• Linked program: Permits the linking of up to 8 consecutive programmes without
the need of user intervention.
• 100 programmable memories, with protection under password.
• Several acoustic and visual messages showing the situation of the device to the
user.
Easy to use
• Microprocessor controlled. Connectivity.
• Induction motor maintenance free (brushless).
• Rotors and adapters list in memory.
• Noise level: below 60 dB.
• Start, stop, open lid and short spin with adjustable speed buttons.
• Possibility to block or modify the speed during the cycle.
• Automatic lid opening, programmable.
• Last values remain in memory.
• Automatic rotor recognition. Over-speed protection.
EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 2017/746/EU.
Standards: EN 61010-1, EN 61010-2-101, EN 61010-2-020, EN 61326-2-6, EN 61326-1.
Safety
• Lid provided with security systems:
- Automatic lid lock system, motorized with double lock.
- Emergency lid-lock release.
- Locking and protection against opening along the run.
- Lid dropping protection.
- Port in the lid for calibration and operation checking.
• Unbalance detection and switch off.
• Protection safety ring between the centrifugation chamber and the housing.
• Chamber of centrifugation in stainless steel (easy cleaning).
• Rotors can be removed with the lid closed. Hermetic lids.
• Rotors and adapters autoclavable, easy to install by the user.
• Forced ventilation to reduce temperature increasing.
• Automatic disconnection for energy saving up to 8 h., with deactivation option.
